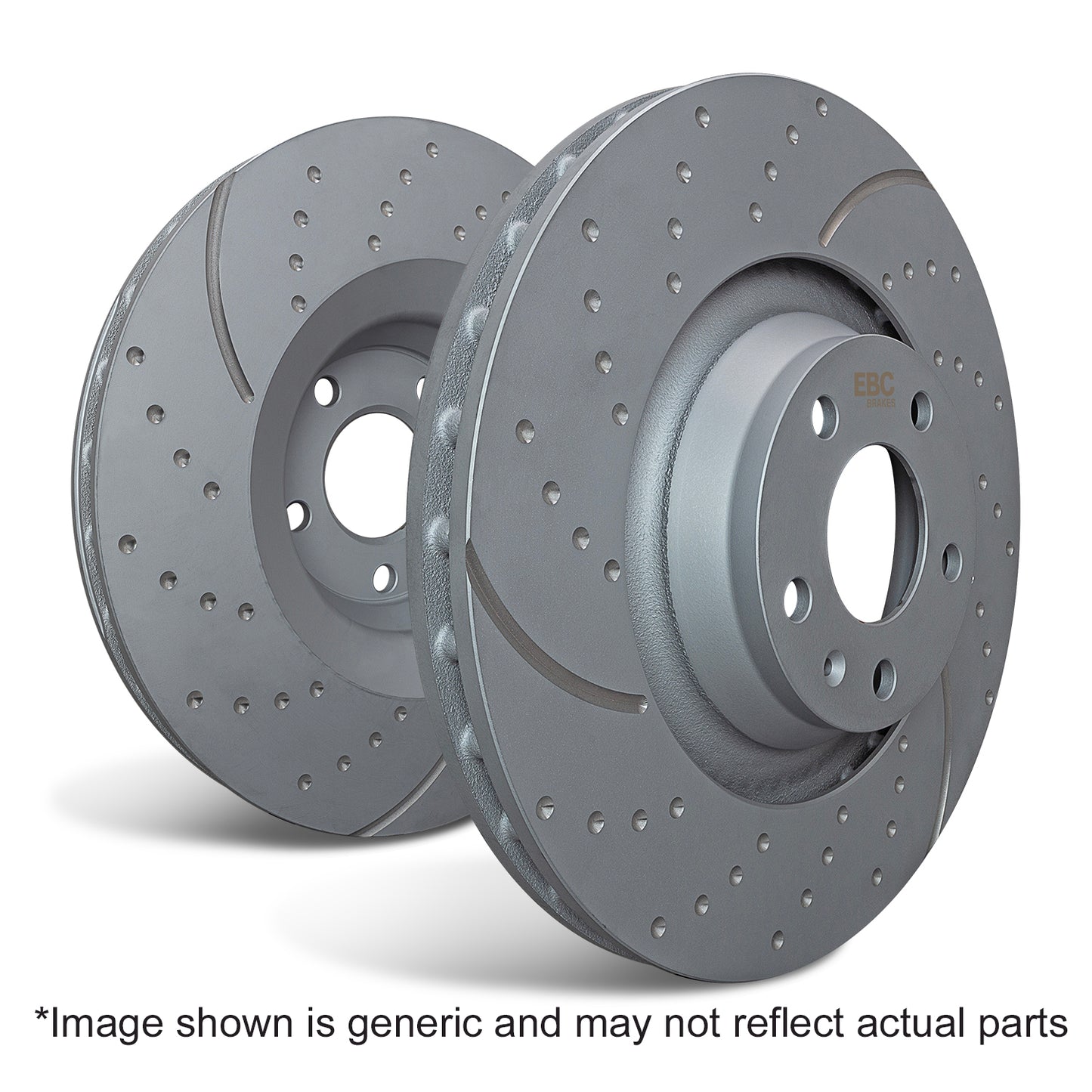

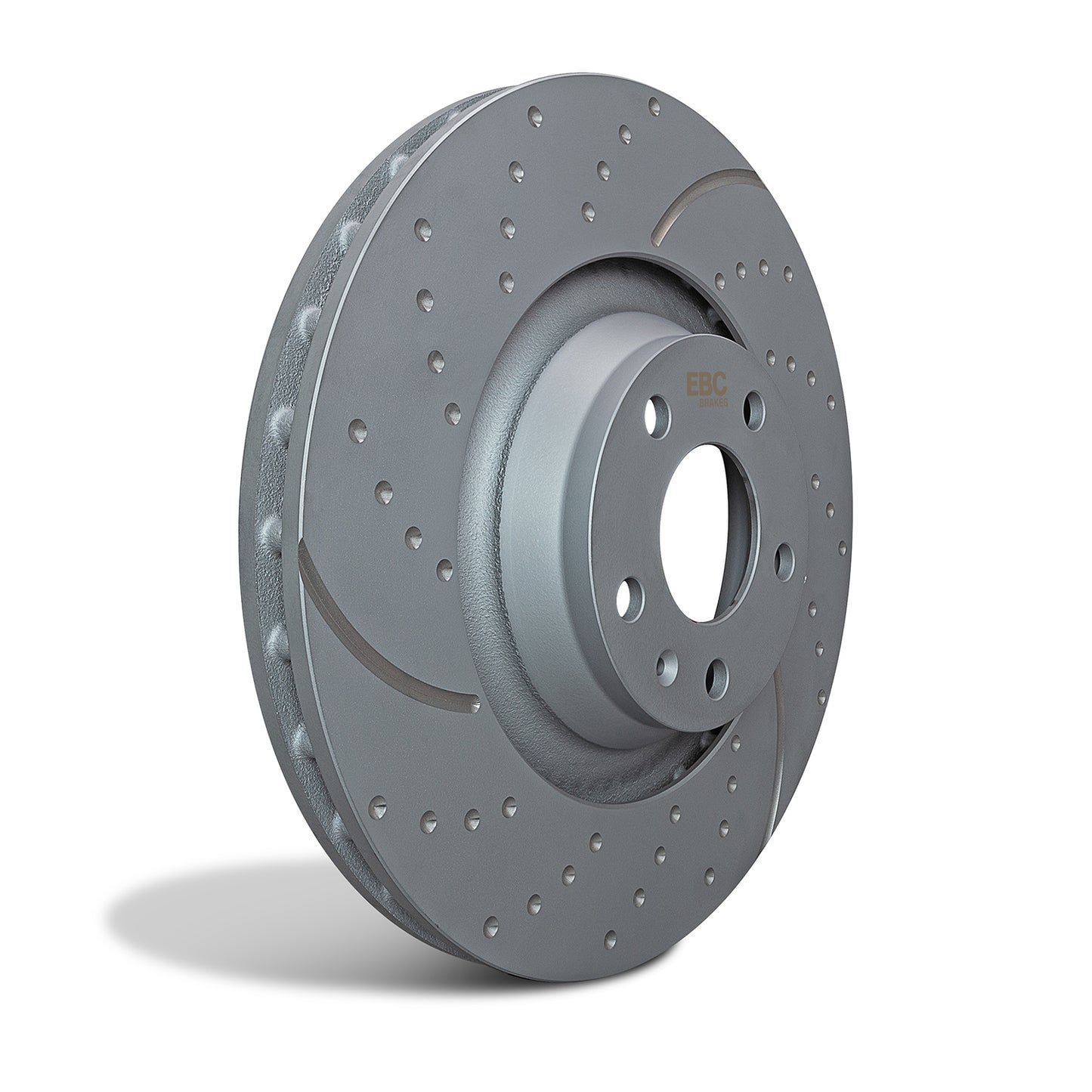

EBC GD Series Slotted and Dimpled Sport Discs (Pair) (GD1939)
EBC GD Series Slotted and Dimpled Sport Discs (Pair) (GD1939)
Regular price
£218.83 GBP
Regular price
£230.35 GBP
Sale price
£218.83 GBP
Unit price
per
Part No.GD1939
Low stock: 6 left
Order in
Couldn't load pickup availability
Please note: All brake pads and discs are sold as full axle sets unless specified. Racing discs can be sold individually.
Description
EBC GD Series Slotted and Dimpled Sport Discs (Pair) (GD1939)
Match this EBC brake disc part number to your vehicle’s brake system using the dimensions and fitment details below. Disc diameter alone is not enough to confirm compatibility.
At a glance
- EBC part number: GD1939
- Fitment position: Rear
- Disc diameter: 290 mm
- Disc construction: Vented
Product specifications
- Fitment position
- Rear
- Manufacturer-listed weight
- 13.2 kg
- Disc construction
- Vented
- Bolt holes
- 5
- Disc diameter
- 290 mm
- Disc height
- 64 mm
- Disc thickness (new)
- 18 mm
- Minimum disc thickness
- 16 mm
Product information
EBC pioneered the dimple drilled rotor in the 1990s a design that has been widely imitated for its ability to provide pad degassing without the need for through-drilled holes, which are known to increase the risk of rotor cracks.
The rotors feature wide aperture slots that actively draw cool air into the interface between the brake pad and rotor, effectively reducing temperatures during heavy braking. This cooling is crucial, as temperatures at the pad contact can exceed 1000 degrees, potentially leading to brake fade or a loss of braking effectiveness.
EBC GD Series sport rotors are entirely machined in the United Kingdom using R90-certified blanks, with most of these blanks cast in the EU. They offer an excellent solution for fast street cars and 4×4 vehicles. Now in their third generation, the rotors feature silver corrosion protection, while the wide aperture slots promote uniform pad wear, maintain cooler operating temperatures, and efficiently expel dirt, mud, water, and dust from the braking area.
Vehicle application examples
The following are examples from the manufacturer’s application catalogue, not a complete fitment list. Match the engine, year, axle and brake-system qualifiers. Contact us if you need help confirming your exact vehicle.
- SUBARU BRZ 2 Petrol; 2012-2021; Power (BHP): 200; Position: Rear; Notes: Vented rear discs; Front caliper: Tokico; Front disc diameter (mm): 294; Rear disc diameter (mm): 290
- SUBARU Legacy 2.5 Turbo Petrol; 2009-2014; Power (BHP): 265; Position: Rear; Rear caliper: Akebono; Front disc diameter (mm): 316; Rear disc diameter (mm): 290
- SUBARU Outback 4th Gen 3.6 Petrol; 2009-2014; Power (BHP): 260; Position: Rear; Rear caliper: Akebono; Front disc diameter (mm): 316; Rear disc diameter (mm): 290
- TOYOTA GR86 2.4 Petrol; 2022-2024; Power (BHP): 231; Position: Rear; Front caliper: Tokico; Front disc diameter (mm): 294; Rear disc diameter (mm): 290
- TOYOTA GT86 2 Petrol; 2012-2021; Power (BHP): 200; Position: Rear; Notes: Vented rear discs; Front caliper: Tokico; Front disc diameter (mm): 294; Rear disc diameter (mm): 290
Before you order
Confirm the part number and vehicle specification, including any brake system or production-year differences. Product images may be representative. Follow the fitting and bedding instructions supplied for your particular product.
Specification
- Minimum Disc Thickness: 16mm
- Maximum Disc Thickness: 18mm
- Disc Height: 64mm
- Disc Diameter: 290mm
- Number of Holes: 5
- Disc Style: Vented
- Weight: 13.2kg
- Fitment Position: Rear
